Anyone can call themselves a "pool designer..."

A vanishing edge, perimeter overflow, infinity edge, knife edge, wet deck, disappearing edge pool or spa, is not appropriate for every situation. Just because a view over looks the water, a canyon, or other natural feature, does not automatically dictate that the design requires a special water in transit effect pool.

Though the swimming pool industry is fraught with so-called "pool designers, " very few possess the ability to actually design. When you view an image of a swimming pool, how often are the residence & surrounding environment shown in the image?

I offer the argument that if (and when) the buildings are shown in the images, you will quickly "feel" something is amiss. The total scene just does not "look right." Most people can never identify exactly what is wrong with the scene - but there is a sense of uneasiness.

Anything can be built anywhere.... but a talented designer is the one who can make everything work together, to appear as though they "just belong." Just because someone has a degree in Architecture, Landscape Architecture, or another design field does not make them "a designer." There are a lot of folks in those fields who do not possess any creativity. College cannot bestow upon someone a sense of color, spatial relationships, or creative talents. Yet because they went to college & studied in a particular field, they call themselves a "designer."

There are millions of people who design products, buildings & landscapes... yet, only a handful of those individuals are true masters of their craft, who possess an innate ability to design. A sense of design that they were "born with." The same is true in the swimming pool industry... though there are many who sell, draw or build swimming pools - there are very few who possess the natural ability to actually design.

It is a talent that one is really born with... though it can be learned. But you can easily distinguish to whom this talent comes naturally from the rest who have a rigidness to their designs & ideas. Most of the later, merely rehash or combine the work of others into something they call their own.

Anyone can use tracing templates or computer software to create a layout for a yard or site. But those methods are limited by the collection of templates or the software code. Neither considers all of the facets that go into designing a project:

A. Many designs do not take into consideration how long the client will be in the property, and how their lifestyles may change or evolve during that period. This could be a topic unto itself....

B. Though a client may want a particular feature (e.g. rock waterfall), it may not be right for the site. A true designer will be able to talk the clients out of such a monstrosity, and will offer alternatives that "work."

How often have you seen a huge pile of rocks stacked on the side of the pool? Have you ever seen such piles occurring in nature in the middle of a field or flat area? Of course not... that's why it looks so unusual & out of place, it is because waterfalls do not occur on flat terrain! In nature, when water does appear on flat terrain, it is usually merely a spring or muddy watering hole.

C. Architecture of the site. How often have you seen a Polynesian theme yard on a Contemporary style residence? Or an amorphic free-form pool on a modern rectilinear house? Or a contemporary pool in the yard of a New England/Cape Cod clapboard house? Does the pool need to be situated to afford or block certain views? Is privacy from the uphill neighbor an issue? Are their prevailing winds or sunlight that need to be filtered? The list is endless...

D. "Just because you can" does not make it right. Just because you can place a fire feature on the pool, does not make it right. Just because you can place a waterfall on the pool, does not make it right. Just because you can install a vanishing edge on the pool, does not make it right. Everything has to work...

It is not about what is right for the builder's wallet, or always what the client initially wants... many times they are not even aware of their options. It is what works for the site, given the client's parameters. There is always a creative solution to a property owner's bad taste. Someone who is confident in their design abilities will be strong enough to offer creative solutions & ideas counter these ideas.

In order to design something, they must also possess an intimate knowledge as to how to build it. If they do not possess that knowledge, then they must be able to "park their ego" and be able to hire someone who can consult with them to "pull it together." In other words, "to conceive it, you must know how to build it right."

The person who possesses an innate design sense is the person who establishes new trends, has innovative solutions to issues, conceals utilitarian components of the project, and forges trails in territories where "no man has gone before."


Paolo Benedetti - Aquatic Artist
"Creating water as art."™
Aquatic Technology Pool & Spa
©www.aquatictechnology.com

Wednesday, September 30, 2009

Phosphates, Algae Blooms & Stain Control Products

The pool service industry, pool owners, and consumers are being fooled and ripped off... AND BIG TIME!!

Are you aware that the most popular stain preventative products in the swimming pool industry are phosphonic acid based formulations? Are you aware that in the presence of chlorine and sunlight they decompose into orthophosphates?

So, here's where the term "sucker" came from...
  • You add stain preventative products one week (see examples below).... and during the week it decomposes into orthophosphates.
  • The next week the orthophosphate levels are off the chart, the pool is covered with algae, so you add a phosphate remover.

To muddy the water even more & to confuse consumers further, some of these very chemical manufacturer's have started packaging & selling formulations of orthophosphate removers combined with their phosphate based stain preventatives!

That's about as intelligent as adding chlorine on one side of the pool, then adding sodium thiosulfate on the other side of the pool!

HEY Service Industry - it's time to raise your voice and let these manufacturer's know that you are not a sucker, and that you're tired of being played for a fool!

You are actually the cause of the high levels of phosphates and the algae blooms!

What products contain phosphates?
Jack's Magic Products (even the ones with phosphate removers!)
Bio-Guard Scale Inhibitor
Blue Wave Super Rust Scale Remover (Suncoast Chemicals, FL & other private labels)
Omni Scale Control
... and many others!

Read the ingredients on the products you are using & recommending. If they are not listed, then go to the manufacturer's website & download their MSDS sheets! The are required by law to provide them.

Look for the word (or parts thereof): "phosphate." It might be hidden in a string of long scientific words - but if it is, set the bottle down & buy something else (e.g. phosphono-, polyphosphate, diphosphonic, etc.).

Some have concentrations below the reportable concentrations (2%), so the ingredients may not be listed or they may list them as "proprietary." BUT be sure to read the entire MSDS, and you'll see somewhere that their products decompose into phosphates (e.g. OMNI, Suncoast) - there's your clue!

Paolo Benedetti - Aquatic Artist
"Creating water as art."™
Aquatic Technology Pool & Spa
©www.aquatictechnology.com

Sunday, July 5, 2009

Ionization - is really Heavy Metal Poisoning of the swimming pool water!

Pool Ionizers, Chemical free pool, chemical free spa, Ecosmarte, Ecosmart, Nature 2, Frog, Pool Rx,

40-50 years ago, swimming pools were plumbed with copper plumbing. The chemicals eventually decayed the plumbing, as did the velocity of the water. This put traces of copper into the water. The copper would eventually cause a blue staining of the plaster. It also reacted with the blond hair of some bathers, to cause that "green hair" effect - that is oftentimes blamed on the chlorine (remember: yellow + blue = green)!

The only positive benefit from the copper in the water, was a virtually algae free pool. Why, do you ask?? The copper (and actually all heavy metals) is an algaecide. It interrupts the plants ability to photosynthesize, thereby killing it.

As pools were eventually plumbed with plastic pipe, pool chemical companies started to manufacture liquid algaecides that contained heavy metals (primarily copper, nickle, and silver). Also in the solution, was a sequestering agent, sometimes also called a chelating agent. The purpose of this additive, was to keep the metals in solution in the presence of variations of high & low pH. Without these additives, in the presence of pH extremes, these metals would precipitate out of solution, staining the pool plaster. These metals do not evaporate out of the pool, and therefore become concentrated in the pool water. Another disadvantage of liquid algaecides, is that these additives eventually wear out.

Because of concerns over the environment, plaster staining, and green hair, these heavy metal algaecides lost favor - though they are still available.

When the industry shifted away from adding metallic algaecides to the water, along comes a different delivery system.... Ionizers (active & passive) which are nothing more than a twist - high-tech dispensers of the outdated & environmentally unsound metallic algaecides.

So along comes some P.T. Barnum types with a "NEW & IMPROVED" whizz-bang device that offers a "CHEMICAL FREE POOL!" In reality it was nothing more than a different method of delivering the same heavy metals into the pool - an erosion feeder. Instead of pouring the liquid algaecide into the pool, they micro-dose it over a longer period of time - with the same results! These are merely a small tank or module plumbed in the piping at the equipment pad. There is a replaceable cartridge within the tank, that emits heavy metals into the water when the pump is on.

They even came up with a fancy new names for these units, "mineralizers," "natural minerals," and "ionizers." And yes, they do put "natural ions" of heavy metals into the water. But cow manure & algae are "natural" too, and people don't want them in their swimming pool either! These cartridge units are collectively known as "passive ionizers." Some tried to hide the fact that they contained heavy metals, and marketed themselves as "natural mineral cartridges." What ever they call themselves, they all put metals into the water. These type of devices are marketed under such trademarked names as: Frog, Nature2, Smart Pure, DuoClear, Pool Rx, Elite Minerals... (the trademarked names belong to their respective owners).

These were marketed to pool owners as a "safe & chemical free way to keep the pool crystal clear with minimal chemicals" (notice that it said minimal - not NO chemicals!). To the pool industry, it was marketed as a re-occurring profit center. Why? Because the pool owner would have to come back to you for replacement cartridges every 3 months!

So, along comes the Ringling Brothers who join the P.T. Barnum Circus & say, "I can offer you all the benefits of the mineral cartridges, without the constant need to replace the expensive modules." and what pray tell, kind of snake oil do they have in their jar??? It is an "active ionizer," wherein electricity is used to cause the erosion of heavy metal plates within a cylinder plumbed into the piping - emitting heavy metal particles into the water.

Again, they are advertising their products as being "chemical free." This may work on the algae present in the pool, but they do nothing to provide a residual sanitizer that will kill the biological hazards or oxidize the bather waste in the pool. Some systems utilize what they call "active oxygen" or what smart people call ozone to kill the bio-hazards & oxidize the waste. However, once the pumps shut off there is NO RESIDUAL SANITIZER/OXIDIZER present in the water! These are marketed under the trademarked names of: EcoSmarte, Eco-Smart, Thompson Tec, Ionizer, Floatron, P-50... (the trademarked names belong to their respective owners).

I do not know how any of these modern systems can purport to provide any residual sanitizer to oxidize bather waste (urea), decompose hydrocarbons (suntan lotions, oils, shampoos, soaps, make-up, cream rinse, etc.), or how they kill viruses or pathogens (that are not plants).

Since the pool water will contain "heavy metals," the pool water absolutely cannot be discharged into ANY street, gutter, storm drain, or waterway (creek, stream, lake, etc.), as it will kill the ecosystem there. Many municipalities will not even let this water containing heavy metals be introduced into their SANITARY SEWER systems. It is just too difficult for them to remove these heavy metals at the sewer treatment facility, before discharging the waste water into the environment. And unlike chlorine, these heavy metals cannot be neutralized.

With all of the old issues of metallic staining & current issues of electrolysis occurring in swimming pools, personally I steer clear of these units or ANYTHING that introduced more metals or electricity into the water. Why in the world would I want to add more metals to the water? They do not evaporate & only build up, creating a concentrated soup of goup.

Over the years, environmentalist and the spread of mis-information about chlorine, have given chlorine a bad rap...

The facts are plain & simple: it is not the chlorine that causes bather discomfort. It is almost always from other water chemistry issues, and almost always due to the lack of proper chemical maintenance, testing, and incorrect dosing of chemicals.

Among the most common complaints: itchy skin (too little chlorine), burning eyes (bad pH or too little chlorine - ammonia compounds), green hair (excess copper), are all attributed to other factors... but ignorant people immediately point their finger at the chlorine - because they "smell" what to them must be chlorine (but are actually chloramines).

These same people sense the strong "chlorine" smell around a commercial or an indoor pool- and immediately assume that there is too much chlorine in the pool.... when what they are smelling is actually resulting from the LACK OF CHLORINE! What they are smelling are the chloramines (ammonia compounds that are formed when chlorine combines with bather waste) off gassing.

This is why you "smell chlorine" on your skin after swimming - but in reality, you are actually smelling your perspiration that has combined with the pool's chlorine that formed chloramines (ammonia compounds) on your skin!

The only real "new"technology is ozone (though it has been around for 30+ years). Done properly with sufficient contact time before re-entering the pool or spa - it has awesome effects on the water quality. Ozone works synergistically with the chlorine, taking over the business of oxidizing bather waste. Since ozone is a thousands times better oxidizer than halogens (such as chlorine, bromine, hydrogen peroxide), it takes over those responsibilities, allowing the halogens to work as sanitizers. The ozone will also kill biological pathogens & viruses, which ionizers will not.

I have personally been toying with ozone for over 18 years. I have 2 separate systems on my personal pool, plumbed into the filtration & vanishing edge systems. I have tweaked my own contact chambers & ozone destruct units to provide additional contact time & to be more effective.

THERE IS ABSOLUTELY NOTHING WRONG WITH USING LIQUID CHLORINE. To be politically correct & environmentally sensitive, we call it "bleach." Chlorine has been used as a pool sanitizer for over 100+ years. It is used to treat drinking water in almost every city in the world. It is used in almost every commercial swimming pool in the world to maintain clear, safe, and sanitary water.

People who do not understand how chlorine reacts with contaminants, heavy metals, and other chemicals, continue to spread myths about what chlorine does & does not do. For example, it does not turn hair green, but copper does! You cannot smell it around a pool, even at 3-5X the normal dosages, but you can smell chloramines (which are a result of too little chlorine). At the correct levels (1-3 ppm) it does not burn the eyes, but incorrect pH or chloramines will! When water containing chlorine must be dumped into a storm drain or sanitary sewer, the chlorine can be neutralized!

People who claim that they are "allergic" to chlorine, in almost every case are really experiencing reactions to the chloramines - which can cause itching & rashes. Someone experiencing "allergic reactions to chlorine" (actually the ammonia compounds/chloramines), could additionally be experiencing an allergic reaction(s) to any of the countless biological contaminants that accumulate in a pool (or worse yet, a spa) when the chlorine levels drop too low:
  • Molluscipox virus.
  • Mycobacterium spp.
  • Verrucas.
  • Staphylococius aureus.
  • Cryptosporidium.
  • Leptospira interrogans.
  • Trichophyton spp.
  • E. Coli
  • Pseudonomas
  • Human pathogens: blood, saliva, feces, urine, perspiration, mucus
  • Epidmerophyton.
  • Acanthamoeba spp.
  • Human papilloma virus.
  • Legionella pneumophila
In asthmatics the inhalation of chloramines can aggravate asthmatic symptoms. But because chlormaines "smell like chlorine," patients report that the chlorine caused the asthmatic attack.

Additionally, alternative treatment manufacturer's and environmentalists point to the fact that chlorine is a carcinogen. Yes it is, but if the studies are investigated, one will note that the prolonged exposure, dosage quantities, and chemical concentrations of chlorine are way beyond what any normal human being will ever ingest over many lifetimes. Again, it is the "chicken little syndrome" - "the sky is falling, the sky is falling..." Did you know that ingesting too much water, too quickly, can kill you??? Does that mean that we should outlaw the drinking of water??? Of course not, but in moderation, the exposure is more than acceptable.

Depending on the scope of the project & chlorine needs, we use barrels to store liquid bleach that is delivered. Where large quantities are needed, say for example on Olympic sized swimming pools, we'll install an on-site electrolytic production. The electrolytic production also creates sodium hydroxide, which is collected for use in buffering the pH.

On site production doesn't always generate enough sodium hydroxide, so pH buffering is augmented with either C02 gas (it forms carbonic acid when injected to the pool water) or a 4:1 muriatic acid solution (4 parts water:1 part acid). At this ratio, the "boiling point" (vapor point) of the acid is reduced, so that you do not get fumes. As an added precaution, the chlorine & acid barrel bung openings are kept sealed & barrels are vented to the outdoors with a 1/4" vent tube.

For water chemistry management and to provide an automatic & instantaneous responses to the demands for additional (or fewer) chemicals (due to 30 kids in the pool, a 100ºF+ heat spell, or a cool weather front), my preference is an automatic ORP/pH controller (CAT Controllers & Acutrol are my 2 brands of preference). It monitors the water, responding to the additional demands placed upon the pool by the environment or bathers, by controlling 2 fixed rate peristaltic pumps (Stenner is my brand of preference)- delivering chlorine & the 4:1 acid solution. Coupled with an over sized 24/7 ozone system, you have as close to a trouble free chemical system as is humanly possible.

Chlorine has been the subject of a lot of false information, much of it spread by these P.T. Barnum's, so they can sell their snake oils. But once their products are actually dissected, they are found to be nothing more than high-tech delivery system of an old, dis-proven, and environmentally hazardous methods of delivering heavy metals into the water & environment.

Ecosmarte, Ecosmart, Nature 2, Frog, Pool Rx, Stenner, CAT, Acutrol, are all trademarked names & are owned by their respective owners. Theirs names are used here merely for reference.

Paolo Benedetti - Aquatic Artist
"Creating water as art."™
Aquatic Technology Pool & Spa
©www.aquatictechnology.com

Wednesday, June 24, 2009

Managing your water chemistry... maintaining an even keel.

Maintaining the water chemistry in your vanishing edge pool, infinity edge pool, negative edge pool, perimeter overflow pool, flooded deck pool, or perimeter overflow pool, is all about consistent & even monitoring, automated chemical control, and dispensing of chemicals.

ALKALINITY

There are a number of factors that contribute to the "balance of the water." The most important are the pH and the alkalinity. The alkalinity is the ability of the water to buffer the pH (or buffer chemicals that may effect the pH). The alkalinity is like an auto-pilot or cruise-control for the pH.

If the alkalinity is out of the acceptable range, then any small factor will cause a wild swing in the pH. This is called "pH bounce." Because of this, the alkalinity is the first thing that should be brought into line when balancing the water.

An ideal range for the alkalinity is 100-120 ppm (though 80 - 140 ppm is acceptable).

pH 7.4-7.6

The pH of the water, determines if it is acidic or basic. Either extreme can have disastrous effects on the pool finish, equipment, or plumbing. When the pH is out of range, bathers may complain of eye discomfort or other ailments.

An acidic pH will cause the water to become aggressive. It will etch the plaster and cement finishes around the pool. Worse yet, it will dissolve the metallic components of the pool. The most expensive metallic component is the copper heat exchanger within the pool heater.

The ideal range for the pH is 7.4 - 7.6 (though 7.2 - 7.8 is acceptable).

Sanitizer

After the alkalinity & pH are brought into range, the next adjustment is the sanitizer. Chlorine is the most common and least expensive of the available sanitizers. The acceptable range is 1.5 - 3 ppm, though 4 - 5 ppm is absolutely fine. A commercial spa should be maintained at much higher levels - 5 - 6 ppm.

A residential pool should be maintained at 3.0 ppm. The higher levels ( 4 - 5 ppm) should be established, prior to a large party or heat spell. Try not to allow the levels to drop below 3 ppm, as this will prevent the need to shock or take other corrective action after the party.

Total Dissolved Solids

Like it says, total dissolved solids (TDS), is the sum of all of the "junk" in the water. It includes dissolved minerals, salts, etc. We refer to this as the "junk in the trunk." When the TDS exceeds approximately 1500 - 1800 ppm above the initial starting point, then it is time to "dump some water." If the make-up water is "soft water," the dilution process will occur much faster (though the salt in the water will add some to the TDS).

Calcium Levels

Calcium is required to prevent the water from becoming aggressive. If there is not a sufficient amount in the water, it will seek an equilibrium and literally draw calcium from the plaster, tile grout, or other cementitious material.

A minimum of 200 ppm is required to prevent aggressive water. However, should the calcium level rise to 400 ppm or above, you can get scaling. Any drastic change in pH (like when adding liquid chlorine), and you can precipitate the calcium out of solution. It will attach to the plaster & cause a rough bumpy surface.

If the water begins to draw the calcium out of the plaster, the plaster surface will begin to feel like sandpaper.

Tile Scaling & Haze Build-up

A build-up of a white film or haze on the tile has nothing to do with the service company not scrubbing the tile... it is merely from the evaporation of water in the pool. As the water evaporates, calcium is left on the tile. Over time, it begins to cause what appears to be a haze.

It is actually calcium, like what is left on your drinking glasses in the dishwasher. To remove it is an additional cost, just like having your car detailed & waxed. Most pool service companies can remove the hazy build-up with specialty chemicals (high strength acids). These acids work by dissolve calcium, but they are "stupid" chemicals because they do not know the difference between the bad calcium (on the surface of the tile) and the good calcium (in the grout between the tiles). The use of these acids more than likely will damage the tile's grout.

An alternative is to hire a firm that utilizes "bead blasting." It is like sandblasting, but fine glass beads are used instead of aggressive sand. Various sizes of glass beads are available, down to very fine like talcum powder.

To prevent (or greatly reduce) the build-up of scale on the tile, a water softener on the fill line can remove all of the calcium from the water. You will have to monitor the calcium levels to maintain the 200 ppm minimum that is required.

But, it is much easier to add calcium, than to remove it. Though a water softener can cost $1000, living with the unsightly build up & the cost of removing it will quickly cost more than that (ROI).


Paolo Benedetti - Aquatic Artist
"Creating water as art."™
Aquatic Technology Pool & Spa
©www.aquatictechnology.com

Tuesday, June 16, 2009

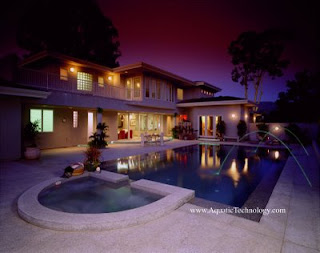

Perimeter Overflow Pool, Flooded Deck Pool, Slot Overflow Pool... or who forgot to turn off the fill line?

Whether you call them waveless pools, overflow pools, perimeter overflow pools, slot overflow pools, knife edge pools, flooded deck pools, slot edge or wet edge pools, zero edge, wetted edge, no edge, or flooded coping pools, or wet deck pools, they all provide essentially the same appearance... that someone forgot to turn off the fill line. They are not to be confused with vanishing edge, negative edge, infinity edge, or disappearing edge pools, though the basic hydraulic principals are the same.

While these pools appear simple, they are actually quite complex. It is what you can't see that makes them complex. To make their design even more difficult, their hydraulic systems are a hybrid of pressurized returns and gravity drain lines.

Adding further to their complexity, they must have remote holding tanks, called surge tanks. The size of these tanks must be carefully calculated to provide enough water to raise the pool (to flood level) and continue the flooding process until that water returns to the surge tank. This quantity of water must be held in storage, plus a quantity necessary to prevent the tank from being pumped dry (a common mistake).

The capacity of the gravity drain lines must be carefully calculated, so that the amount of water held in reserve can be calculated. The time it takes for the water to begin to return to the holding tank is another critical calculation. The pitch (slope) of the gravity drain lines also determines the velocity that the water travels. Too slow, and the water cannot scour the debris in the lines. Too steep, and the entry point of these lines within the tank, drops significantly below grade. The further away from the pool the tank is located, the larger (or deeper underground) the tank must be placed - as the descending slope of the drain line gets lower & lower the further from the pool it travels. These gravity drain lines also cannot be calculated at their maximum capacity, as they must maintain some "freeboard." That is air in the top of the pipe. This prevents the formation of suction & a really annoying sucking sound!

The tank must have additional storage capacity to allow for displacement from the pool. Displacement comes primarily from wind and from bathers. Now there's a novel idea - people actually swimming in the pool! I cannot tell you how many of these tanks I have seen that were undersized. Every time someone went swimming, a few hundred to a thousand gallons of water was forced out of the tank's overflow line, only to have to be replaced when the fill line turned on.

On the opposite side, the lack of understanding of the hydraulic complexities of these pools, oftentimes results in the surge tank being WAY over sized. While there is nothing wrong with an over sized tank, it is a waste of money, labor, materials, and energy to build them over sized. Having to filter & chemically treat a few thousand gallons of extra water adds up over time.

The lack of proper planning, oftentimes leads to the neglect of maintenance of these tanks. This is where all of the large debris from the pool settles. If the builder designed the tank improperly, this debris is never drawn into the suction line, and therefore the pump strainer basket or filter.
These tanks should be outfitted with main drains, inlets to direct the flow towards these drains, auto-fill lines to also assist in the debris management, ladder rungs for personnel access, vacuum ports for cleaning, personnel access hatch over the ladder rungs, lighting (when fiber optic or low voltage is used on the project), and most importantly, a strainer. The strainer sifts out the large debris before it is deposited onto the floor. I have my own design for a SS basket placed in the path of the incoming line. A smaller lid is placed over this strainer basket to facilitate inspection and servicing of the basket.

By failing to make servicing these tanks easy, the service personnel will simply fail or neglect to service these tanks. At least 2X each year, they need to be drained, rinsed out, and vacuumed with a shop vacuum. An alternate approach, is to drain them to within 12" of the floor, and if one was installed, utilize the internal vacuum port in the floor with a pool vacuum to collect the debris into the pool filter system. This is best performed immediately before the filters are serviced 2X annually (cartridge or DE).

This brings us to filter selection... DE filters are not the wisest choice. They are simply too difficult to recharge after they are back washed or serviced, without the installation of a slurry line or tank.

The detail that is used on the edge of the pool where it meets the water, is one of personal preference. The current rage and most difficult to execute, is the knife edge. I will discuss this technique in detail in another blog.
